How to Match a Wall Dimmer to LEDs Without Flicker or Guesswork

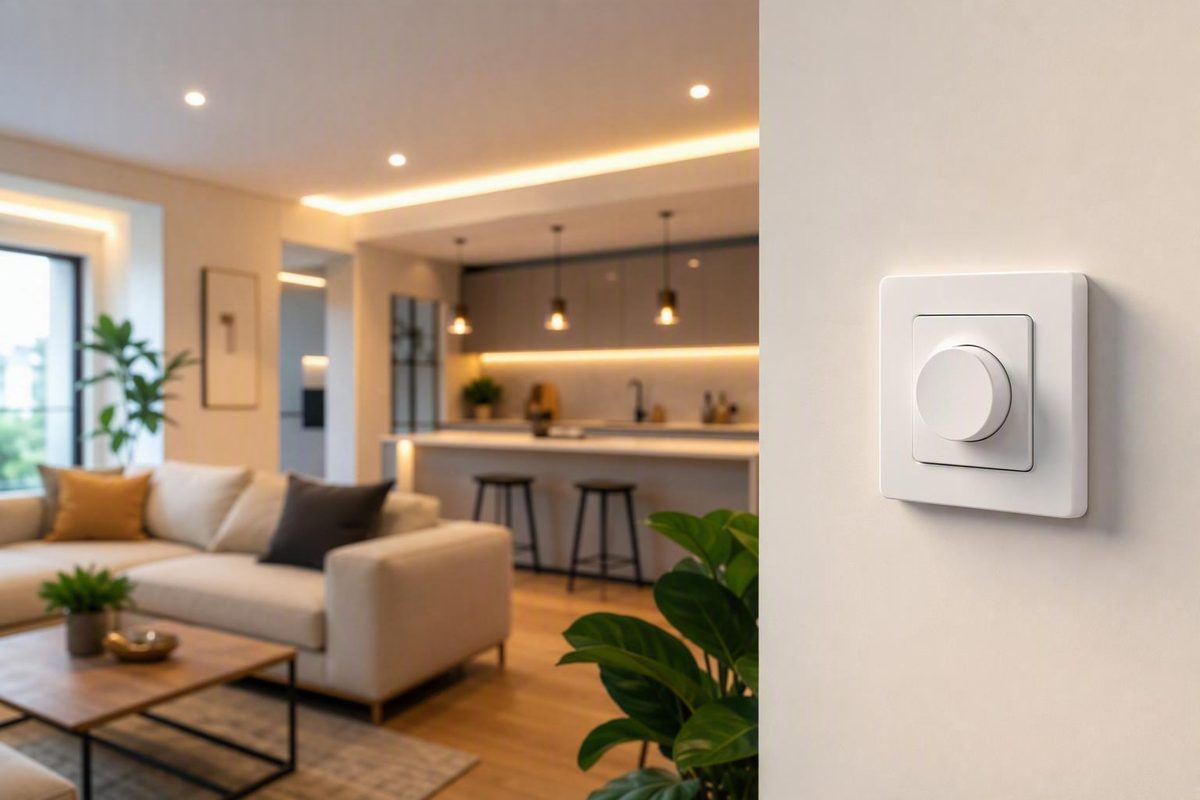

A TRIAC dimmer switch is a mains-side phase-cut control that varies how much of each AC half-cycle reaches a lighting load. That makes it useful in compatible residential retrofits, but it does not make every dimmable LED compatible.

Reliable dimming depends on the complete system: the exact wall control, LED lamp or integrated fixture, external driver where applicable, phase-control method, connected load, wiring arrangement, and operating environment. Labels such as “LED dimmer,” “dimmable LED,” and “TRIAC compatible” narrow the search, but they do not prove that two particular products will work well together.

Use this guide as a compatibility-screening process rather than a list of universally approved products. Identify the light or driver first, determine which control input it accepts, and then select and test a dimmer documented for that load.

What a TRIAC dimmer does to the AC waveform

A basic wall switch supplies either full power or no power. A TRIAC dimmer adds an adjustable switching point within each AC half-cycle.

After the waveform crosses zero, a classic TRIAC dimmer waits for a selected interval and then switches on. It conducts for the remainder of that half-cycle. Earlier turn-on generally delivers more of the waveform; later turn-on delivers less. This repeated process is called phase-cut or phase-control dimming.

In a simplified description, conduction ends near the following zero crossing as load current falls, and the process begins again in the opposite direction. That explanation is sufficient for choosing a dimmer, although electronic and reactive loads should not be treated as if their current behavior were identical to a purely resistive lamp.

The TRIAC itself is a bidirectional semiconductor switching element with two main terminals and a gate. Its bidirectional operation allows it to control both halves of an AC waveform. The practical point is that the dimmer repeatedly switches portions of the AC input; it does not continuously lower voltage in the way a conventional transformer does. A simplified component explanation appears in HowStuffWorks’ overview of TRIAC dimmer switching.

The firing angle is not a brightness percentage. Delivering half of a phase-controlled waveform does not necessarily produce 50% light output. An incandescent filament, an LED bulb with an internal driver, and a separate LED driver can respond differently to the same chopped waveform.

The principle can be represented conceptually as follows. These diagrams are not to scale.

Untouched AC waveform

/ / \
------/---\------/---\------
/ / \

Forward-phase half-cycles

High output:   | short cut |--------- conducted ---------|
Medium output: |------ cut ------|------ conducted -------|
Low output:    |----------- cut -----------|-- conducted --|

In forward-phase control, each half-cycle starts with a cut portion followed by a conducted portion. The diagrams intentionally avoid assigning exact brightness percentages because the result depends on the lamp or driver.

TRIAC, forward phase, reverse phase, MLV, and ELV: the terminology decoded

Lighting terminology is inconsistent enough that labels should be treated as clues, not final compatibility decisions.

Leading-edge and forward-phase describe the same basic waveform treatment: the control removes the beginning of each half-cycle and switches on later. Classic TRIAC wall dimming is generally associated with this method.

Trailing-edge and reverse-phase controls remove the end of each half-cycle. They switch on near the beginning and turn off before the half-cycle ends.

Some sellers nevertheless use “TRIAC dimming” as a broad label for mains phase-cut dimming, including forward- and reverse-phase products. Others reserve TRIAC for forward-phase controls. The documentation should therefore identify the actual phase method instead of relying on the category name alone.

MLV means Magnetic Low Voltage. It traditionally identifies controls intended for magnetic transformers and is associated with leading-edge or forward-phase operation.

ELV means Electronic Low Voltage. It traditionally identifies controls intended for electronic transformers or power supplies and is associated with trailing-edge or reverse-phase operation. An LED product containing electronics does not automatically require an ELV dimmer: its driver may accept forward phase, reverse phase, both, or neither. These traditional associations—and the increasingly loose use of MLV and ELV labels—are described in Lumicrest’s phase-dimming terminology guide.

A universal dimmer can support more than one documented phase-control mode. “Universal” does not mean compatible with every lamp; approved load categories, ratings, wiring requirements, and compatibility information still apply.

Label	Waveform edge removed	Common alternate term	Traditional load association	Documentation to verify
TRIAC	Usually the beginning	Leading edge, forward phase	Incandescent, halogen, and compatible phase-dimmable loads	Whether the manufacturer uses “TRIAC” strictly or as a broad phase-cut label
Leading edge	Beginning	Forward phase	Resistive loads and compatible magnetic transformers	Approved LED lamps or drivers, minimum load, and LED maximum
Trailing edge	End	Reverse phase	Compatible electronic power supplies	Exact lamp or driver approval and load range
MLV	Usually beginning	Magnetic Low Voltage, forward phase	Magnetic transformers	Transformer type, load rating, and LED-driver approval
ELV	Usually end	Electronic Low Voltage, reverse phase	Electronic transformers or supplies	Whether the exact LED driver accepts reverse phase
Universal	Product-dependent	Multi-mode or adaptive phase control	Multiple documented load categories	Available modes, selection method, and approved loads

“Electronic,” “low voltage,” and “LED” describe different characteristics. None independently determines the required waveform. The light or driver instructions should name the accepted control method.

Why LED compatibility is a system-level question

Incandescent and halogen lamps are generally more straightforward phase-cut loads. Their filaments respond to changes in delivered energy without an electronic driver interpreting the chopped waveform.

An LED is different. A replacement bulb normally contains an internal driver. An integrated fixture may have a built-in or replaceable driver, while low-voltage strip lighting generally uses a separate power supply or driver. The design of that electronic stage determines whether the product can interpret a phase-cut input and how it behaves near minimum output.

Treat compatibility as a chain:

1. Wall dimmer
2. LED lamp, integrated fixture, or external driver
3. Approved phase-control mode
4. Connected quantity and nominal load
5. Minimum and LED-specific maximum load
6. Neutral and other wiring requirements
7. Single-pole or multi-location configuration
8. Environmental and installation conditions

Every relevant link must match. The lamp, fixture, or driver must first be identified as dimmable. It must then support the dimmer’s phase method and approved load category.

Even that does not guarantee ideal behavior. A combination can switch on and vary brightness while still showing visible shimmer, audible noise, delayed starting, sudden low-end dropout, uneven adjustment, incomplete shutoff, or a narrow usable range. Some LEDs also have a nonzero dimming floor and may not reach complete darkness. Super Bright LEDs similarly advises checking combined wattage, minimum and maximum limits, and the particular pairing rather than relying only on category labels in its LED dimming overview.

Check both sides of a proposed pairing:

• Look for an approved-lamp, fixture, or driver list from the dimmer manufacturer.
• Look for compatible-dimmer information from the lighting manufacturer.
• Match full model numbers, including suffixes and revisions.
• Check whether compatibility applies to the intended number of lamps.
• Ask the manufacturer when either side omits the other model.

Absence from a compatibility list does not prove that a combination will fail. It means the list does not establish that it will work. An exact documented pairing is stronger evidence than a generic compatibility label.

Do not assume different lamp models can share a dimmer merely because their wattages are similar. Their internal drivers may start, dim, and draw standby current differently. The same caution applies to mixing LEDs with incandescent lamps or combining fixtures with replacement bulbs. Use mixed loads only when the applicable documentation explicitly approves them.

For a multi-room or multi-circuit project, begin with a small, reversible trial. Use the exact proposed dimmer, lamps or driver, intended quantity, and intended circuit arrangement. Test repeated starts, full output, usable low-end operation, full-off behavior, and noise before buying the remaining equipment.

The pre-purchase worksheet: ratings and documentation to verify

Build the technical worksheet before comparing colors, faceplates, apps, or prices.

Item	What to record	Why it matters
Exact model numbers	Dimmer, lamp, fixture, driver, and accessory suffixes	Similar product names may conceal different ratings or wiring
Supply	Voltage and frequency	Both must match the circuit and equipment
Approved loads	LED, CFL, incandescent, halogen, MLV, ELV, driver, or another named category	A rating for one category does not automatically transfer to another
Phase method	Forward phase, reverse phase, selectable, or automatic	Must match the lamp or driver input
Minimum load	Lowest documented load for the relevant category	A load below the supported range can contribute to unstable operation
LED maximum	Maximum permitted LED load	Use this instead of the incandescent maximum
Connected load	Quantity multiplied by nominal watts per lamp, or documented driver input load	Provides the first sizing comparison
Neutral	Required, optional, or not used	Particularly important for smart controls and existing switch boxes
Circuit arrangement	Single-pole, three-way, companion control, or another named method	Multi-location compatibility is product-specific
Certification	Mark, file or listing number, and authoritative record	A seller badge alone is not independent verification
Environment	Dry, damp, wet, indoor, outdoor, and temperature limits	The control must remain within its marked conditions
Multi-gang derating	Model-specific reduced rating, if applicable	Adjacent devices or removed heat-sink sections may change capacity
Manual and compatibility list	Current documents for the exact model	Needed before installation and final purchasing

A bounded load calculation

Suppose a circuit will have eight 9 W LED lamps:

8 × 9 W = 72 W nominal connected LED load

Compare 72 W with:

• the dimmer’s LED-specific maximum;
• the dimmer’s minimum LED load;
• any model-specific multi-gang rating;
• the lamp manufacturer’s compatible-dimmer guidance; and
• the approved number of lamps, if a quantity limit is stated.

Do not compare 72 W only with a prominent 600 W incandescent rating. LED and incandescent ratings can be substantially different because the loads behave differently electrically.

For example, GL LED US Lighting lists one smart dimmer for 120 V, 60 Hz, with a 3–200 W LED/CFL range and a separate 15–600 W incandescent range. The figures demonstrate why load categories must be read separately. They are seller-provided specifications; the page’s certification, compatibility, and performance claims have not been independently verified in this article.

Nominal wattage is necessary, but it does not prove compatibility. Use the arithmetic as a screening test, followed by exact-model documentation and a physical trial.

Wiring and installation questions

Record whether the control supports single-pole operation, a conventional three-way arrangement, a proprietary companion device, or another multi-location method. Do not infer the wiring method from the number of buttons or terminals visible in a listing.

Make neutral-wire status a mandatory question. Conventional and smart dimmers do not all use the same arrangement, and similarly described products can differ. The exact manual—not a generic diagram—must govern installation.

For a multi-gang box, obtain the manufacturer’s derating table for that model and configuration.

Stop when a listing conflicts with itself

A conflicting title, model number, description, voltage, or wattage field is a procurement warning. Do not select whichever figure seems most plausible.

One CLEANLIFE page is a useful documentation-audit example. Its visible listing describes a 120 VAC product, includes “600W” in the identifier, states 150 W elsewhere, and also contains a notice referring to a 48–51 V low-voltage system. Those statements do not define one unambiguous application, so the listing cannot support a product recommendation without clarification and model-specific documentation from the seller.

Ask these five questions before buying from an unclear listing:

1. What is the exact input voltage and frequency?
2. What is the verified minimum and maximum LED load?
3. Which phase-control type does the dimmer use?
4. Is a neutral required?
5. Where are the current installation manual and compatibility list?

If the answers do not reconcile the listing, choose a product with traceable documentation.

Using a wall dimmer with low-voltage LED strips

A wall-mounted TRIAC dimmer operates on mains AC. A typical 12 V or 24 V LED strip requires low-voltage DC, so the wall control does not normally connect directly to bare strip.

The supported system path is generally:

Mains supply → compatible phase-cut wall dimmer → phase-dimmable LED driver → matching low-voltage LED strip

The driver converts line-voltage AC to the strip’s required 12 V or 24 V DC output and interprets the changing phase-cut input. It must explicitly accept the selected phase-control method; an ordinary non-dimmable power supply should not be assumed to work. This mains-dimmer-to-compatible-driver arrangement is described in SuperLightingLED’s TRIAC dimming overview.

Check the system in both directions:

• Does the wall dimmer approve the driver or its load category?
• Does the driver accept the dimmer’s forward-phase or reverse-phase method?
• Does the driver’s output voltage match the strip voltage?
• Is the strip load within the driver’s documented output range?
• Is the driver input load within the dimmer’s minimum and LED-specific maximum?
• Are strip length, wiring losses, enclosure, and thermal conditions covered by the respective instructions?

A driver labeled “TRIAC dimmable” still needs closer review. Determine whether that means forward phase, reverse phase, or both. A universal wall control provides useful flexibility only among modes accepted by the exact driver.

Mains-side phase cutting and low-voltage PWM are not interchangeable terms. Phase cutting modifies the driver’s AC input. PWM regulates output by varying the proportion of on-time to off-time on the LED side or within a driver. A phase-dimmable driver may interpret an AC phase-cut signal and regulate its output internally, but that does not make a wall TRIAC dimmer a low-voltage PWM controller.

This distinction also defines the installation boundary. Planning strip voltage, driver capacity, and low-voltage layout is different from installing a line-voltage wall control. Do not turn the high-level system path above into a generic wiring diagram.

Troubleshooting flicker, buzzing, glow, and low-end dropout

Poor behavior is evidence of a possible system mismatch, not immediate proof that the lamp, driver, or dimmer is defective.

Start every diagnosis with the same four checks:

1. Confirm that the exact lamp, integrated fixture, or driver is dimmable.
2. Confirm its supported phase-control method.
3. Compare the connected load with the documented minimum and LED-specific maximum.
4. Review compatibility information from both manufacturers.

Then use the symptom to narrow the investigation.

Symptom	Possible system-level causes	Next documented check
Visible flicker or shimmer	Phase mismatch, unsupported lamp, load outside range, mixed drivers, unstable low end	Compatibility lists, phase mode, load limits, and documented low-end trim
Audible buzzing	Switching interaction at the dimmer, lamp, fixture, transformer, or driver	Identify the physical source before replacing components
Delayed start	Load below minimum, driver startup behavior, incompatible phase mode	Test repeated starts with the intended number of identical loads
Sudden dropout near minimum	Driver operating floor or an unstable low-end setting	Check for a model-specific calibration feature
Restricted dimming range	Nonzero driver floor or partial compatibility	Review the documented range and test an approved pairing
Uneven adjustment	Control-curve and driver interaction or mixed lamps	Test identical loads and change one variable at a time
Faint light after shutoff	Standby or leakage current, wiring arrangement, driver sensitivity	Review neutral and off-state documentation; consult the manufacturer or an electrician

Flicker or low-end dropout

If the lights are stable at medium and high output but flicker or shut off near minimum, check whether the exact dimmer has a documented low-end trim or calibration feature. Follow its manual because there is no universal adjustment sequence.

Calibration may remove an unusable portion of the control range, but it cannot turn an unsupported lamp into a documented match. If the stable range remains unacceptable, test a pairing approved by both manufacturers.

Buzzing

Determine where the sound originates. Listen separately at the wall control, each lamp, the fixture, and any remote driver or transformer. Noise at the dimmer and noise at the driver can point to different interactions.

Do not attempt to cure buzzing by increasing wattage, installing an undocumented dummy load, or mixing lamp types. Such changes can hide the symptom while creating an unapproved configuration.

Delayed or uneven starting

Test with the intended quantity of identical lamps. One lamp may behave differently from the final circuit, while a group below the documented minimum may not provide the operating conditions the dimmer expects.

Observe cold starts and repeated starts from different dimmer positions. Compare the results with the documented minimum load and compatible quantity. Change only one variable at a time: the dimmer, lamp or driver, load quantity, or phase mode.

Off-state glow

A faint glow after shutoff can occur when a small current continues through a particular control-and-driver combination.

Review the exact dimmer’s neutral requirement, standby behavior, and off-state documentation. Then consult the manufacturer or an electrician. Do not assume every no-neutral smart dimmer will cause glow—or that none will.

The available evidence does not provide independent measurements of flicker, audible noise, electromagnetic interference, or minimum stable output. Terms such as “smooth” and “flicker-free” should therefore not be treated as measurable guarantees for an untested pairing.

When TRIAC fits—and when another control method may fit better

TRIAC is a candidate, not a universal winner. It can suit compatible residential and small-project retrofits because the control is conveyed through changes to the mains waveform rather than through a separate control pair. That can be useful when existing conductors are an important constraint.

Whether forward phase or reverse phase is appropriate still depends on the exact lamp or driver. Reverse phase is not automatically better for every LED, just as an existing forward-phase control is not automatically suitable because it once dimmed incandescent lamps.

Other methods use different system architectures:

• 0–10 V uses a separate low-voltage control signal connected to a compatible driver and is commonly encountered with commercial LED equipment.
• DALI uses a digital, addressable control bus for compatible drivers, devices, and groups.
• PWM regulates output through rapid switching and may operate on the low-voltage LED side or within a driver.
• Smart or networked drivers can add scheduling, scenes, addressing, monitoring, or platform integration, subject to product-specific ecosystem support.

The separate roles of phase control, 0–10 V signaling, DALI communication, and PWM regulation are summarized in KDShine’s comparison of LED dimming architectures.

Method	Control location	Additional control wiring	Equipment that must be compatible	Likely project context	Principal verification questions
Forward-phase TRIAC	Mains input	Often no separate control pair	Dimmer and lamp, fixture, or driver	Compatible residential retrofit	Does the load approve forward phase, and is it within LED limits?
Reverse phase/ELV	Mains input	Often no separate control pair	Reverse-phase control and approved load	Retrofit or new work with compatible electronic loads	Does the driver specifically accept reverse phase?
Universal phase dimmer	Mains input	Product-dependent	Dimmer, selected mode, and load	Projects needing phase-mode flexibility	Which modes are supported, and how are they selected?
0–10 V	Separate analog control input	Usually yes	Controller, control wiring, and 0–10 V driver	Compatible commercial or planned installations	What wiring and off behavior does the driver require?
DALI	Digital control bus	Yes	Bus equipment, controls, addressed drivers, and software	Managed multi-fixture systems	Which functions, versions, and commissioning tools are supported?
Low-voltage PWM	Driver output or low-voltage circuit	Low-voltage control wiring may be needed	Controller, strip, voltage, current, and power supply	Strip and other low-voltage systems	Is the controller rated for the strip voltage and load?
Smart/networked driver	Driver or fixture network interface	Depends on protocol	Driver, gateway or hub, app, and ecosystem	Projects needing scenes, schedules, or integration	What remains available if the network or cloud is unavailable?

Use this decision tree:

1. Retrofit or new construction? A retrofit may favor a compatible control that uses existing mains conductors. New construction allows consideration of separate control wiring and addressable systems.

2. What is the load? Identify replacement lamps, an integrated LED fixture, or a low-voltage strip with an external driver.

3. What wiring is available? Record neutral availability, multi-location conductors, and whether a separate control pair or bus can be installed.

4. What control input does the light or driver accept? This is the decisive technical filter: forward phase, reverse phase, 0–10 V, DALI, another documented protocol, or low-voltage PWM.

5. What behavior and controls are required? Define the acceptable low-end range, full-off behavior, local manual control, scenes, scheduling, addressing, and platform integration.

6. Which documented system satisfies all five conditions? Compare exact products without assuming differences in price, reliability, efficiency, noise, flicker, or minimum dimming level unless evidence for those products supports the comparison.

Smart dimmers, final testing, and the line-voltage safety boundary

“Smart” describes a control interface or connectivity feature. It does not establish whether the product uses forward phase, reverse phase, or another control method. It also says nothing by itself about LED compatibility, neutral requirements, multi-location wiring, or load ratings.

Use a separate smart-dimmer checklist:

• Neutral required, optional, or not used
• Wireless protocol
• Supported app by exact name
• Supported voice platforms by exact name
• Hub or gateway requirement
• Wi-Fi band, where applicable
• Bluetooth version, where applicable
• Single-pole and multi-location method
• Standby and off-state behavior
• Firmware-update method and stated support
• Manual operation when the network, hub, or cloud is unavailable
• Phase-control mode and LED load range
• Environmental marking and operating-temperature limits

As one attributed example, GL LED US Lighting claims that its dimmer supports Wi-Fi or Bluetooth, app and voice control, automation, 120 V operation, hard-wire installation, and dry indoor use. The visible page does not identify the exact apps, voice platforms, Wi-Fi band, Bluetooth version, neutral requirement, or detailed wiring configuration. Those omissions must be resolved before ecosystem or installation compatibility can be confirmed.

A customer review cannot fill that gap. A reviewer may describe using a particular voice assistant, but that does not establish native support, the required intermediary device, continued firmware support, or an approved wiring configuration. Smart-home claims should come from current documentation for the exact model.

Certification deserves the same discipline. A seller-page badge or statement is not independent proof of a current certification. Verify the exact model in the certification organization’s authoritative records and confirm that the record covers the intended product and configuration.

Follow environmental markings literally. The example product above is identified by its seller for dry indoor use, so that listing does not support installation in damp, wet, outdoor, or water-adjacent conditions. An indoor wall control and a weather-resistant low-voltage load remain separate system components with separate location restrictions.

Final commissioning checklist

After installation according to the exact manual:

1. Reconfirm all model numbers and ratings.
2. Confirm the installed lamp quantity and nominal connected load.
3. Verify that any selectable phase mode matches the load documentation.
4. Test full-on operation.
5. Move slowly through the usable dimming range.
6. Check for flicker, shimmer, dropout, and uneven transitions.
7. Listen at the dimmer, lamps, fixture, and driver.
8. Check full-off behavior.
9. Test repeated starts at high, medium, and low settings.
10. Verify local manual operation and documented smart functions.
11. Record the final phase mode and any manufacturer-approved trim setting.
12. Repeat the observations after the system has reached normal operating conditions.

A wall-mounted TRIAC dimmer handles line voltage. Installation must follow its model-specific instructions and applicable local requirements; the appropriate professional requirements vary by jurisdiction. Work at an electrical panel belongs with an electrician under LED Lighting Zone’s stated line-voltage safety boundary.

Frequently asked questions

Can I use a TRIAC dimmer with any dimmable LED bulb?

No. “Dimmable” means the bulb supports some form of dimming; it does not prove compatibility with every TRIAC dimmer.

Confirm that the exact bulb supports the dimmer’s phase method and approved load category. Check the minimum load, LED-specific maximum, intended lamp quantity, and wiring arrangement. Then test the exact pairing for stable starting, acceptable low-end behavior, noise, and complete shutoff.

Is a TRIAC dimmer leading-edge or trailing-edge?

In strict, traditional usage, a classic TRIAC wall dimmer is generally a leading-edge or forward-phase control. It waits after each zero crossing and then conducts for the remainder of the half-cycle.

Trailing-edge or reverse-phase controls remove the end of the waveform and commonly use other semiconductor switching arrangements. Because some vendors use “TRIAC dimming” broadly for more than one form of mains phase control, verify the phase method in the actual product documentation.

Can I size an LED load using the dimmer’s incandescent wattage rating?

No. Use the dimmer’s LED-specific maximum and minimum load.

If eight LED lamps are rated at 9 W each, their nominal connected load is 72 W. Compare that figure with the documented LED range and any applicable multi-gang limit—not just a higher incandescent rating. Wattage is a necessary sizing step, but exact-model compatibility remains decisive.

Why do LED lights glow when a dimmer is switched off?

A small current may continue through some control-and-driver combinations. Possible factors include smart-dimmer standby requirements, no-neutral design, wiring configuration, and driver sensitivity.

Review the exact dimmer’s neutral, standby-current, and off-state documentation. Because the explanation varies by product, obtain manufacturer or electrician guidance rather than adding an undocumented load or assuming the lamp is defective.

Does a TRIAC dimmer work with 12 V or 24 V LED strips?

It can, but a typical low-voltage strip must not be treated as a direct mains load.

The supported path is mains supply to a compatible phase-cut dimmer, then to a phase-dimmable driver, and finally to the 12 V or 24 V strip. The driver must accept the selected phase method, and its output voltage and capacity must match the strip. A standard non-dimmable power supply should not be assumed to work.

The compatibility-first decision rule

Identify the exact light or driver, confirm its accepted phase-control method, calculate the connected LED load, and verify both the minimum and LED-specific maximum. Then check neutral and multi-location requirements, model-specific derating, environmental restrictions, current documentation, and certification records where applicable.

Finally, test the exact proposed dimmer, lamp or driver, load quantity, and circuit configuration before expanding the installation. A TRIAC dimmer can be an effective retrofit control, but documented compatibility and observed performance—not a broad product label—determine whether it is right for a particular LED system.
